Name: LTC7000EMSE-1#TRPBF
Brand: Analog Devices Inc.
SKU: LTC7000EMSE-1#TRPBF
Price: 8.77 USD
Availability: InStock

REF: LTC7000EMSE-1#TRPBF Analog Devices Inc.

LTC7000EMSE-1#TRPBF

Analog Devices Inc.

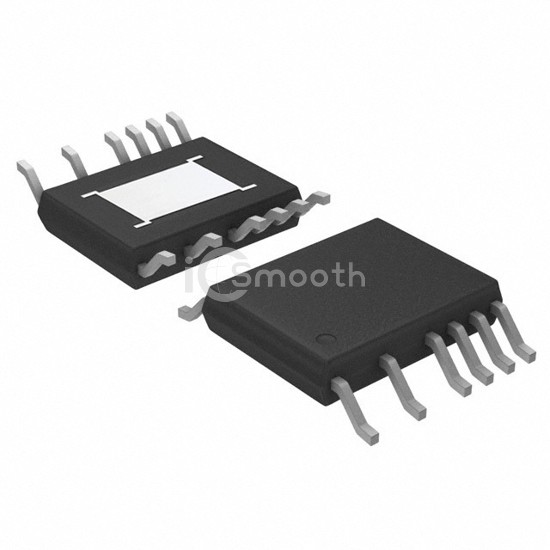

IC GATE DRVR HIGH-SIDE 16MSOP

LTC7000EMSE-1#TRPBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE 16MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3.5V ~ 135V, package / case 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad.

Datasheet Request a Quote

In Stock: 4,369

Tiered Pricing USD

1+ $8.7700 —

10+ $5.9060 -33%

25+ $5.1592 -41%

100+ $4.3151 -51%

250+ $3.9007 -56%

500+ $3.8375 -56% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	High-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel MOSFET
Voltage - Supply	3.5V ~ 135V
Logic Voltage - VIL, VIH	1.8V, 1.7V
Current - Peak Output (Source, Sink)	-

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	135 V
Rise / Fall Time (Typ)	90ns, 40ns
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad
Supplier Device Package	16-MSOP-EP
