Name: LTC5800IWR-WHMA#PBF
Brand: Analog Devices Inc.
SKU: LTC5800IWR-WHMA#PBF
Price: 70.90 USD
Availability: InStock

REF: LTC5800IWR-WHMA#PBF Analog Devices Inc.

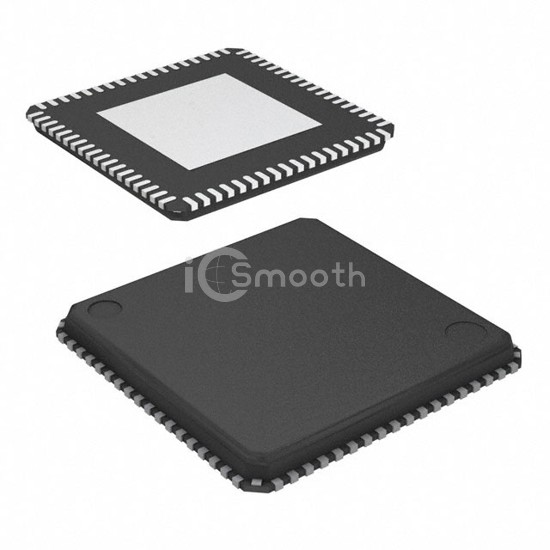

LTC5800IWR-WHMA#PBF

Analog Devices Inc.

IC RF TXRX+MCU 802.15.4 72VFQFN

LTC5800IWR-WHMA#PBF is a RF Transceiver ICs manufactured by Analog Devices Inc.. IC RF TXRX+MCU 802.15.4 72VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.1V ~ 3.76V, package / case 72-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,007

Tiered Pricing USD

1+ $70.9000 —

10+ $62.3210 -12%

25+ $59.3520 -16%

168+ $57.7750 -19% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	802.15.4
Protocol	WirelessHART
Modulation	-
Frequency	2.4GHz
Data Rate (Max)	250kbps
Power - Output	8dBm
Sensitivity	-95dBm
Memory Size	512kB Flash, 72kB SRAM

Serial Interfaces	I²C, JTAG, SPI, UART
GPIO	27
Voltage - Supply	2.1V ~ 3.76V
Current - Receiving	4.5mA
Current - Transmitting	5.4mA ~ 9.7mA
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	72-VFQFN Exposed Pad
Supplier Device Package	72-QFN (10x10)
