LTC5800IWR-IPMA#PBF

In Stock: 5,730

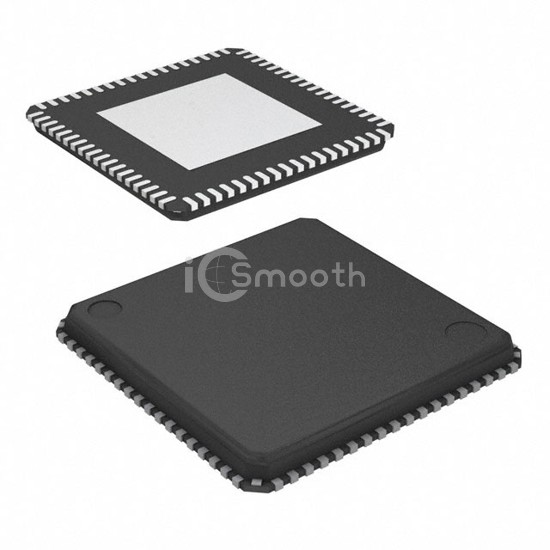

LTC5800IWR-IPMA#PBF - Analog Devices Inc. - RF Transceiver ICs
REF: LTC5800IWR-IPMA#PBF Analog Devices Inc.
LTC5800IWR-IPMA#PBF

Analog Devices Inc.

IC RF TXRX+MCU 802.15.4 72VFQFN

LTC5800IWR-IPMA#PBF is a RF Transceiver ICs manufactured by Analog Devices Inc.. IC RF TXRX+MCU 802.15.4 72VFQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.1V ~ 3.76V, package / case 72-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,730

Tiered Pricing USD
1+ $30.6900 —
10+ $26.8130 -13%
25+ $25.4684 -17%
168+ $22.9904 -25%
336+ $22.1857 -28% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4
Protocol6LoWPAN
Modulation-
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output8dBm
Sensitivity-95dBm
Memory Size512kB Flash, 72kB SRAM
Serial InterfacesI²C, JTAG, SPI, UART
GPIO27
Voltage - Supply2.1V ~ 3.76V
Current - Receiving4.5mA
Current - Transmitting5.4mA ~ 9.7mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case72-VFQFN Exposed Pad
Supplier Device Package72-QFN (10x10)
