LTC5800HWR-IPMA#PBF

In Stock: 2,933

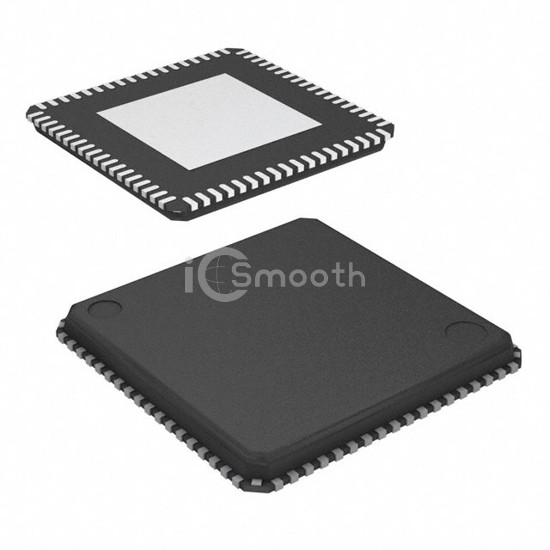

LTC5800HWR-IPMA#PBF - Analog Devices Inc. - RF Transceiver ICs
REF: LTC5800HWR-IPMA#PBF Analog Devices Inc.
LTC5800HWR-IPMA#PBF

Analog Devices Inc.

IC RF TXRX+MCU 802.15.4 72VFQFN

LTC5800HWR-IPMA#PBF is a RF Transceiver ICs manufactured by Analog Devices Inc.. IC RF TXRX+MCU 802.15.4 72VFQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - supply 2.1V ~ 3.76V, package / case 72-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,933

Tiered Pricing USD
1+ $33.4700 —
10+ $29.2520 -13%
25+ $27.7908 -17%
168+ $25.0992 -25%
336+ $24.2252 -28% BEST

Specifications

19 parameters
Product StatusActive
TypeTxRx + MCU
RF Family/Standard802.15.4
Protocol6LoWPAN
Modulation-
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output8dBm
Sensitivity-95dBm
Memory Size512kB Flash, 72kB SRAM
Serial InterfacesI²C, JTAG, SPI, UART
GPIO27
Voltage - Supply2.1V ~ 3.76V
Current - Receiving4.7mA
Current - Transmitting5.6mA ~ 9.9mA
Operating Temperature-55°C ~ 105°C
Mounting TypeSurface Mount
Package / Case72-VFQFN Exposed Pad
Supplier Device Package72-QFN (10x10)
