LTC4444HMS8E-5#TRPBF

In Stock: 2,242

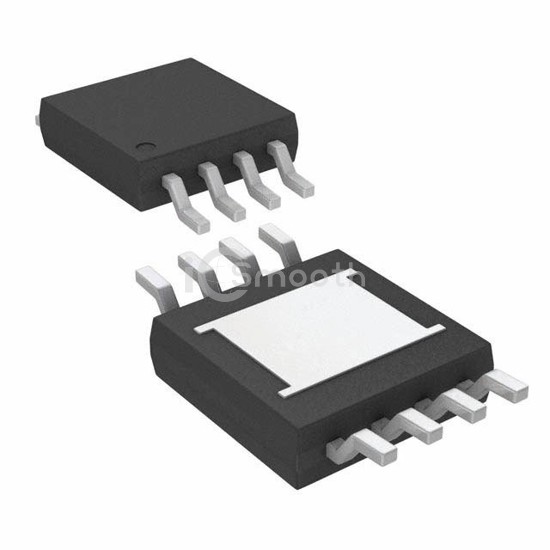

LTC4444HMS8E-5#TRPBF - Analog Devices Inc. - PMIC - Gate Drivers
REF: LTC4444HMS8E-5#TRPBF Analog Devices Inc.
LTC4444HMS8E-5#TRPBF

Analog Devices Inc.

IC GATE DRVR HALF-BRIDGE 8MSOP

LTC4444HMS8E-5#TRPBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HALF-BRIDGE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 13.5V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,242

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 13.5V
Logic Voltage - VIL, VIH1.85V, 3.25V
Current - Peak Output (Source, Sink)2.5A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)114 V
Rise / Fall Time (Typ)8ns, 5ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package8-MSOP-EP
