LTC4440IMS8E#TRPBF

In Stock: 9,791

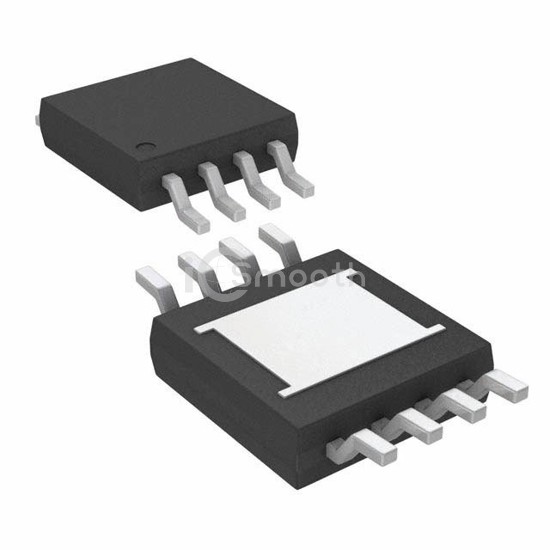

LTC4440IMS8E#TRPBF - Analog Devices Inc. - PMIC - Gate Drivers
REF: LTC4440IMS8E#TRPBF Analog Devices Inc.
LTC4440IMS8E#TRPBF

Analog Devices Inc.

IC GATE DRVR HIGH-SIDE 8MSOP

LTC4440IMS8E#TRPBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 15V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,791

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHigh-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 15V
Logic Voltage - VIL, VIH1.3V, 1.6V
Current - Peak Output (Source, Sink)2.4A, 2.4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)80 V
Rise / Fall Time (Typ)10ns, 7ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package8-MSOP-EP
