Name: LTC4440ES6#TRMPBF
Brand: Analog Devices Inc.
SKU: LTC4440ES6#TRMPBF
Price: 7.25 USD
Availability: InStock

REF: LTC4440ES6#TRMPBF Analog Devices Inc.

LTC4440ES6#TRMPBF

Analog Devices Inc.

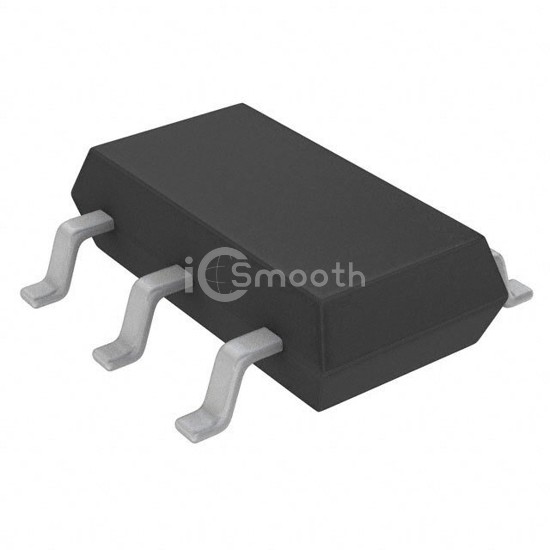

IC GATE DRVR HIGH-SIDE TSOT23-6

LTC4440ES6#TRMPBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE TSOT23-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 8V ~ 15V, package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 6,592

Tiered Pricing USD

1+ $7.2500 —

10+ $4.8250 -33%

25+ $4.1932 -42%

100+ $3.4788 -52%

250+ $3.1280 -57% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	High-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 15V
Logic Voltage - VIL, VIH	1.3V, 1.6V
Current - Peak Output (Source, Sink)	2.4A, 2.4A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	80 V
Rise / Fall Time (Typ)	10ns, 7ns
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
