Name: LTC4440AHMS8E-5#PBF
Brand: Analog Devices Inc.
SKU: LTC4440AHMS8E-5#PBF
Price: 7.87 USD
Availability: InStock

REF: LTC4440AHMS8E-5#PBF Analog Devices Inc.

LTC4440AHMS8E-5#PBF

Analog Devices Inc.

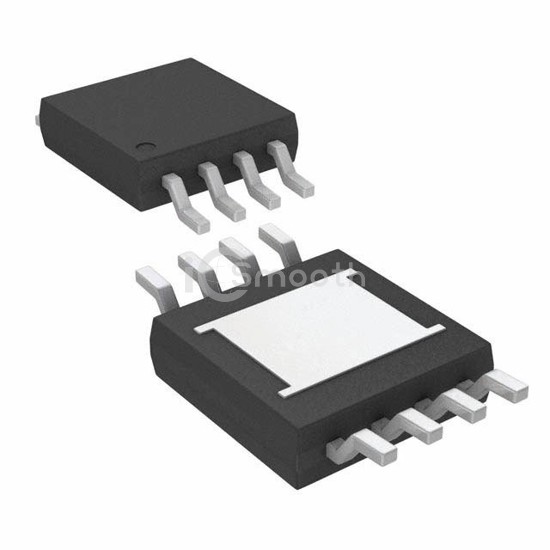

IC GATE DRVR HIGH-SIDE 8MSOP

LTC4440AHMS8E-5#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4V ~ 15V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,690

Tiered Pricing USD

1+ $7.8700 —

10+ $5.2630 -33%

50+ $4.1666 -47%

100+ $3.8167 -52%

250+ $3.4398 -56%

500+ $3.3125 -58% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	High-Side
Channel Type	Single
Number of Drivers	1
Gate Type	N-Channel MOSFET
Voltage - Supply	4V ~ 15V
Logic Voltage - VIL, VIH	1.2V, 1.6V
Current - Peak Output (Source, Sink)	1.1A, 1.1A

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	80 V
Rise / Fall Time (Typ)	10ns, 7ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package	8-MSOP-EP
