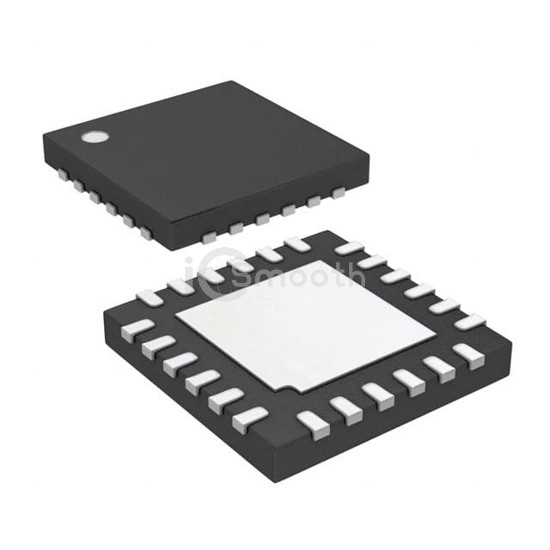

Name: LTC3862IUH-2#PBF
Brand: Analog Devices Inc.
SKU: LTC3862IUH-2#PBF
Price: 11.54 USD
Availability: InStock

REF: LTC3862IUH-2#PBF Analog Devices Inc.

LTC3862IUH-2#PBF

Analog Devices Inc.

IC REG CTRLR BOOST/SEPIC 24QFN

LTC3862IUH-2#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BOOST/SEPIC 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 5.5V ~ 36V, package / case 24-WQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,991

Tiered Pricing USD

1+ $11.5400 —

10+ $7.9060 -31%

73+ $6.0989 -47%

146+ $5.6560 -51%

292+ $5.5500 -52% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, SEPIC
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	5.5V ~ 36V
Frequency - Switching	75kHz ~ 500kHz

Duty Cycle (Max)	96%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Frequency Control, Phase Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-WQFN Exposed Pad
Supplier Device Package	24-QFN (5x5)
