LTC3861EUHE#PBF

In Stock: 6,306

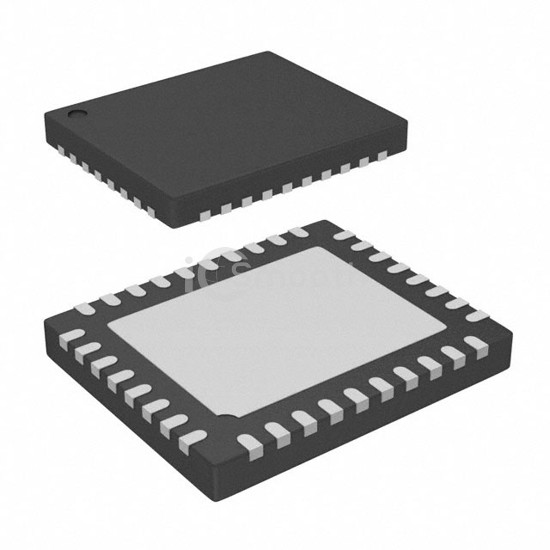

LTC3861EUHE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: LTC3861EUHE#PBF Analog Devices Inc.
LTC3861EUHE#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 36QFN

LTC3861EUHE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 36-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,306

Tiered Pricing USD
1+ $9.5800 —
10+ $6.4880 -32%
61+ $5.0590 -47%
122+ $4.6640 -51%
305+ $4.3250 -55% BEST

Specifications

18 parameters
Product StatusActive
Output TypePWM Signal
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs2
Output Phases2
Voltage - Supply (Vcc/Vdd)3V ~ 5.5V
Frequency - Switching250kHz ~ 3MHz
Duty Cycle (Max)91.5%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case36-WFQFN Exposed Pad
Supplier Device Package36-QFN (5x6)
