Name: LTC3859EUHF#TRPBF
Brand: Analog Devices Inc.
SKU: LTC3859EUHF#TRPBF
Price: 12.97 USD
Availability: InStock

REF: LTC3859EUHF#TRPBF Analog Devices Inc.

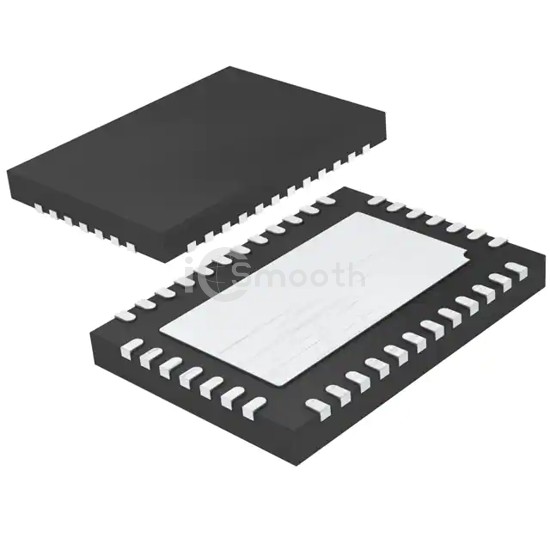

LTC3859EUHF#TRPBF

Analog Devices Inc.

IC REG CTRLR MULT TOPOLOGY 38QFN

LTC3859EUHF#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR MULT TOPOLOGY 38QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,030

Tiered Pricing USD

1+ $12.9700 —

10+ $8.9550 -31%

25+ $7.9080 -39%

100+ $6.7239 -48%

250+ $6.4875 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Buck-Boost, SEPIC
Number of Outputs	3
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	115kHz ~ 835kHz, 350kHz ~ 535kHz

Duty Cycle (Max)	99%, 100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	38-WFQFN Exposed Pad
Supplier Device Package	38-QFN (5x7)
