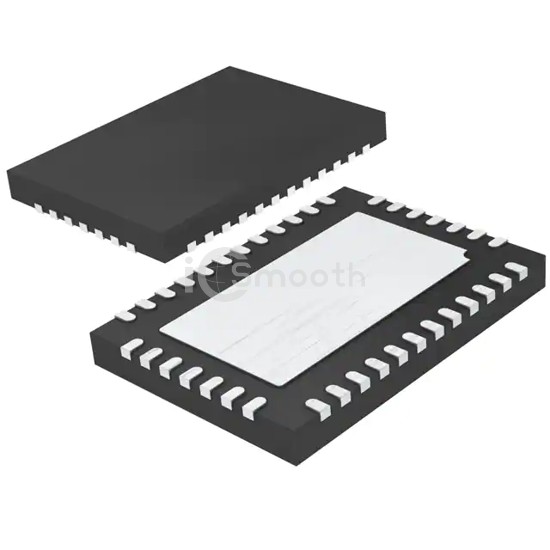

Name: LTC3859AMPUHF#PBF
Brand: Analog Devices Inc.
SKU: LTC3859AMPUHF#PBF
Price: 30.18 USD
Availability: InStock

REF: LTC3859AMPUHF#PBF Analog Devices Inc.

LTC3859AMPUHF#PBF

Analog Devices Inc.

IC REG CTRLR MULT TOPOLOGY 38QFN

LTC3859AMPUHF#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR MULT TOPOLOGY 38QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 52

Tiered Pricing USD

1+ $30.1800 —

10+ $22.0150 -27%

52+ $19.4750 -35% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Buck-Boost, SEPIC
Number of Outputs	3
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	115kHz ~ 835kHz, 350kHz ~ 535kHz

Duty Cycle (Max)	99%, 100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	38-WFQFN Exposed Pad
Supplier Device Package	38-QFN (5x7)
