Name: LTC3859ALHFE#PBF
Brand: Analog Devices Inc.
SKU: LTC3859ALHFE#PBF
Price: 15.15 USD
Availability: InStock

REF: LTC3859ALHFE#PBF Analog Devices Inc.

LTC3859ALHFE#PBF

Analog Devices Inc.

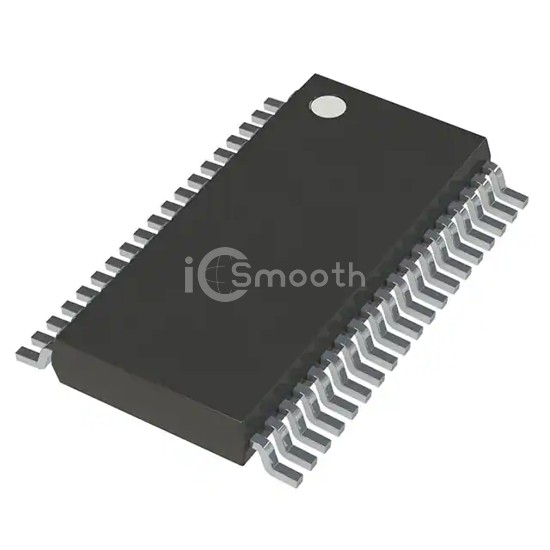

IC REG CTRLR MULT TOP 38TSSOP

LTC3859ALHFE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR MULT TOP 38TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-TFSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 63

Tiered Pricing USD

1+ $15.1500 —

10+ $10.5590 -30%

50+ $8.6286 -43%

100+ $8.0128 -47%

250+ $7.9625 -47% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Buck-Boost, SEPIC
Number of Outputs	3
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	115kHz ~ 835kHz, 350kHz ~ 535kHz

Duty Cycle (Max)	99%, 100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	38-TFSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	38-TSSOP-EP
