Name: LTC3855EUJ#PBF
Brand: Analog Devices Inc.
SKU: LTC3855EUJ#PBF
Price: 10.29 USD
Availability: InStock

REF: LTC3855EUJ#PBF Analog Devices Inc.

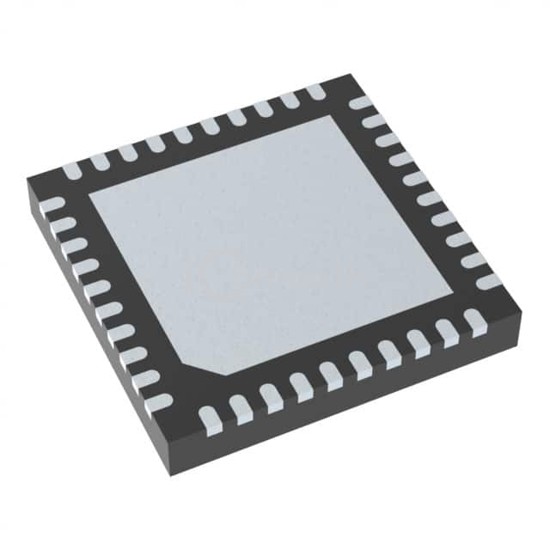

LTC3855EUJ#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 40QFN

LTC3855EUJ#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 40QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 37

Tiered Pricing USD

1+ $10.2900 —

10+ $7.0020 -32%

61+ $5.4805 -47%

122+ $5.0603 -51%

305+ $4.7625 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	250kHz ~ 770kHz

Duty Cycle (Max)	95%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
