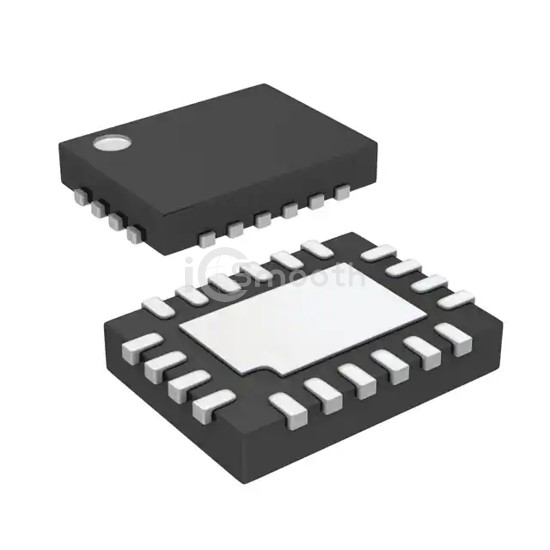

Name: LTC3807IUDC#TRPBF
Brand: Analog Devices Inc.
SKU: LTC3807IUDC#TRPBF
Price: 3.99 USD
Availability: InStock

REF: LTC3807IUDC#TRPBF Analog Devices Inc.

LTC3807IUDC#TRPBF

Analog Devices Inc.

IC REG CTRLR BUCK 20QFN

LTC3807IUDC#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 38V, package / case 20-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,229

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 38V
Frequency - Switching	50kHz ~ 900kHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x4)
