Name: LTC3807HUDC#PBF
Brand: Analog Devices Inc.
SKU: LTC3807HUDC#PBF
Price: 9.75 USD
Availability: InStock

REF: LTC3807HUDC#PBF Analog Devices Inc.

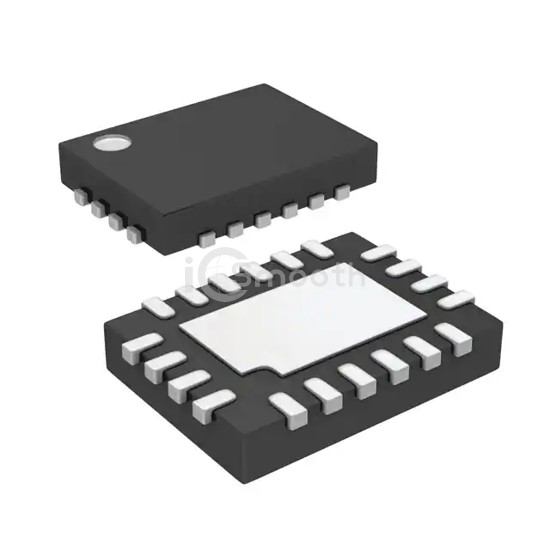

LTC3807HUDC#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 20QFN

LTC3807HUDC#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4V ~ 38V, package / case 20-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,378

Tiered Pricing USD

1+ $9.7500 —

10+ $6.6070 -32%

91+ $4.9158 -50%

182+ $4.5540 -53%

273+ $4.4250 -55% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 38V
Frequency - Switching	50kHz ~ 900kHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Soft Start, Tracking
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x4)
