Name: LTC3807EUDC#PBF
Brand: Analog Devices Inc.
SKU: LTC3807EUDC#PBF
Price: 8.15 USD
Availability: InStock

REF: LTC3807EUDC#PBF Analog Devices Inc.

LTC3807EUDC#PBF

Analog Devices Inc.

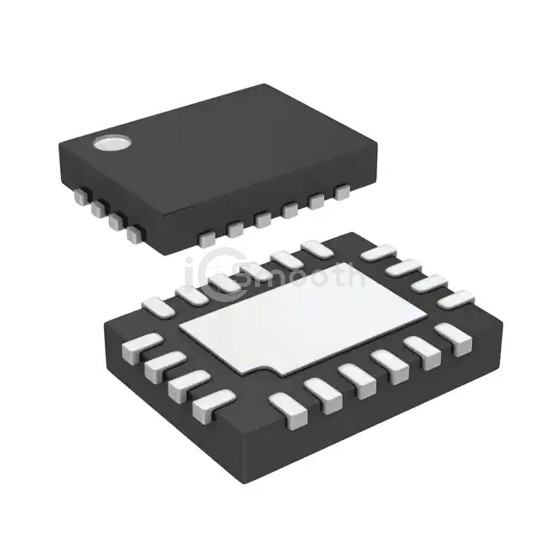

IC REG CTRLR BUCK 20QFN

LTC3807EUDC#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 38V, package / case 20-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,525

Tiered Pricing USD

1+ $8.1500 —

10+ $5.4640 -33%

91+ $4.0174 -51%

182+ $3.7078 -55%

273+ $3.5505 -56%

546+ $3.4750 -57% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 38V
Frequency - Switching	50kHz ~ 900kHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x4)
