Name: LTC3806EDE#TRPBF
Brand: Analog Devices Inc.
SKU: LTC3806EDE#TRPBF
Price: 5.66 USD
Availability: InStock

REF: LTC3806EDE#TRPBF Analog Devices Inc.

LTC3806EDE#TRPBF

Analog Devices Inc.

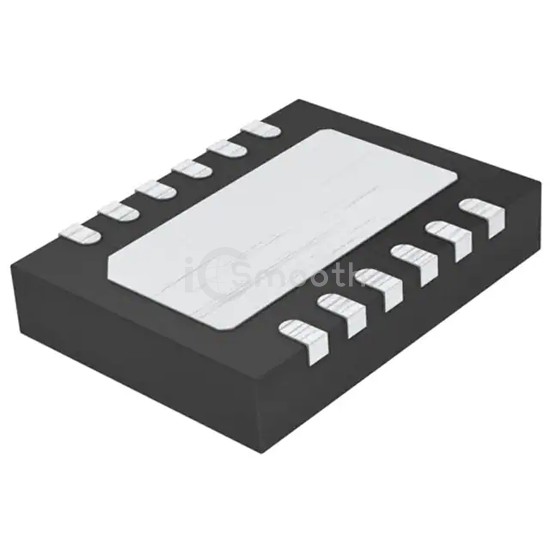

IC REG CTRLR FLYBACK 12DFN

LTC3806EDE#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FLYBACK 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 25V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,005

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Flyback
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	10V ~ 25V
Frequency - Switching	250kHz

Duty Cycle (Max)	89%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (4x3)
