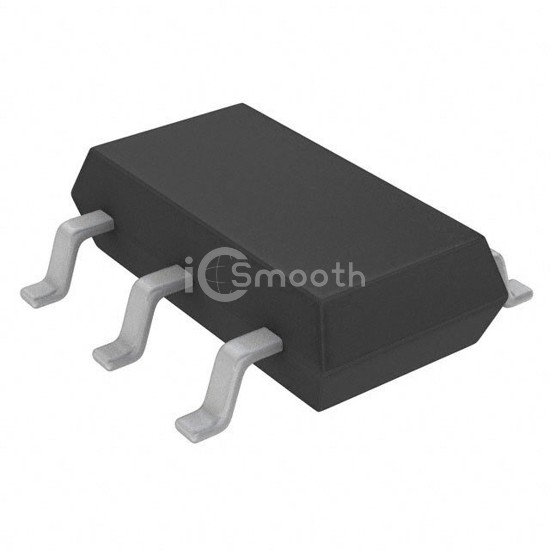

Name: LTC3803MPS6-5#TRMPBF
Brand: Analog Devices Inc.
SKU: LTC3803MPS6-5#TRMPBF
Price: 12.96 USD
Availability: InStock

REF: LTC3803MPS6-5#TRMPBF Analog Devices Inc.

LTC3803MPS6-5#TRMPBF

Analog Devices Inc.

IC REG CTRLR FLYBACK TSOT23-6

LTC3803MPS6-5#TRMPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FLYBACK TSOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4V ~ 8.1V, package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 5,350

Tiered Pricing USD

1+ $12.9600 —

10+ $8.9420 -31%

25+ $7.8956 -39%

100+ $6.7129 -48%

250+ $6.4750 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Flyback
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 8.1V
Frequency - Switching	200kHz

Duty Cycle (Max)	80%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
