Name: LTC3803MPS6-3#TRMPBF
Brand: Analog Devices Inc.
SKU: LTC3803MPS6-3#TRMPBF
Price: 12.06 USD
Availability: InStock

REF: LTC3803MPS6-3#TRMPBF Analog Devices Inc.

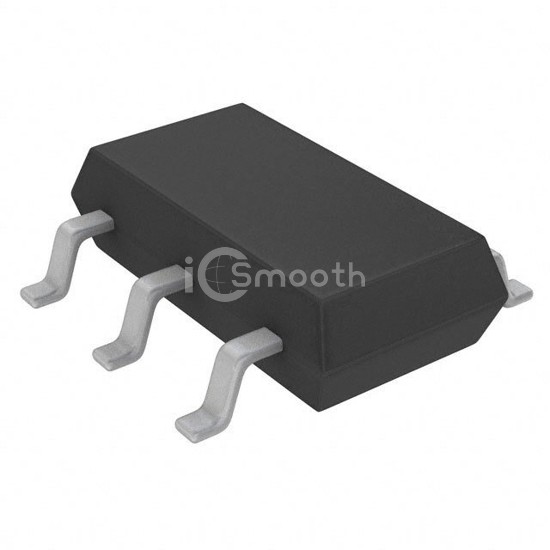

LTC3803MPS6-3#TRMPBF

Analog Devices Inc.

IC REG CTRLR FLYBACK TSOT23-6

LTC3803MPS6-3#TRMPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FLYBACK TSOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 5.7V ~ 8V, package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 1,249

Tiered Pricing USD

1+ $12.0600 —

10+ $8.2870 -31%

25+ $7.3028 -39%

100+ $6.1907 -49%

250+ $5.8875 -51% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Flyback
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	5.7V ~ 8V
Frequency - Switching	300kHz

Duty Cycle (Max)	80%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
