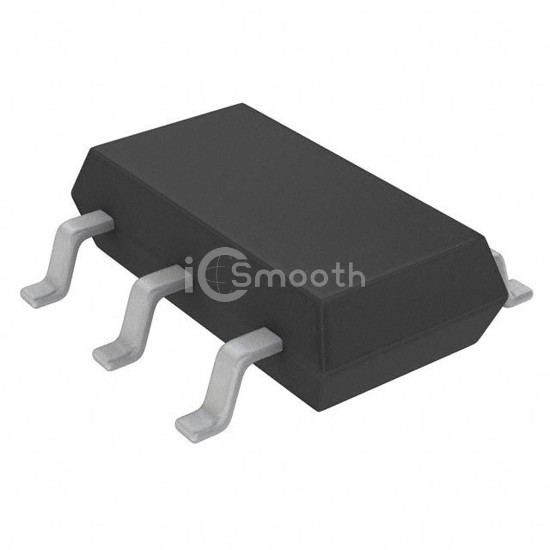

Name: LTC3801BES6#TRMPBF
Brand: Analog Devices Inc.
SKU: LTC3801BES6#TRMPBF
Price: 7.82 USD
Availability: InStock

REF: LTC3801BES6#TRMPBF Analog Devices Inc.

LTC3801BES6#TRMPBF

Analog Devices Inc.

IC REG CTRLR BUCK TSOT23-6

LTC3801BES6#TRMPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK TSOT23-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.4V ~ 9.8V, package / case SOT-23-6 Thin, TSOT-23-6.

Datasheet Request a Quote

In Stock: 8,150

Tiered Pricing USD

1+ $7.8200 —

10+ $5.2320 -33%

25+ $4.5568 -42%

100+ $3.7927 -52%

250+ $3.4176 -56% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	2.4V ~ 9.8V
Frequency - Switching	550kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-23-6
