LTC3777ELXE#PBF

In Stock: 7,585

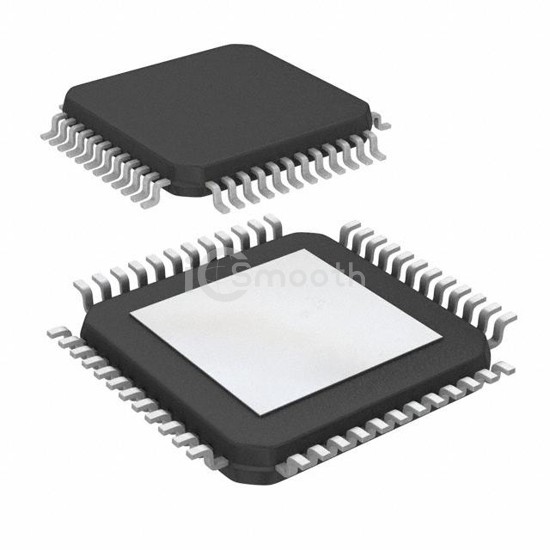

LTC3777ELXE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: LTC3777ELXE#PBF Analog Devices Inc.
LTC3777ELXE#PBF

Analog Devices Inc.

150V VIN AND VOUT SYNCHRONOUS 4-

LTC3777ELXE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. 150V VIN AND VOUT SYNCHRONOUS 4-. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 4.5V ~ 150V, package / case 48-LQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 7,585

Tiered Pricing USD
1+ $21.2000 —
10+ $15.1080 -29%
25+ $13.5208 -36%
100+ $12.3625 -42% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)4.5V ~ 150V
Frequency - Switching50kHz ~ 600kHz
Duty Cycle (Max)90%
Synchronous RectifierYes
Clock SyncYes
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Soft Start
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case48-LQFP Exposed Pad
Supplier Device Package48-eLQFP (7x7)
