LTC3774IUHE#PBF

In Stock: 97

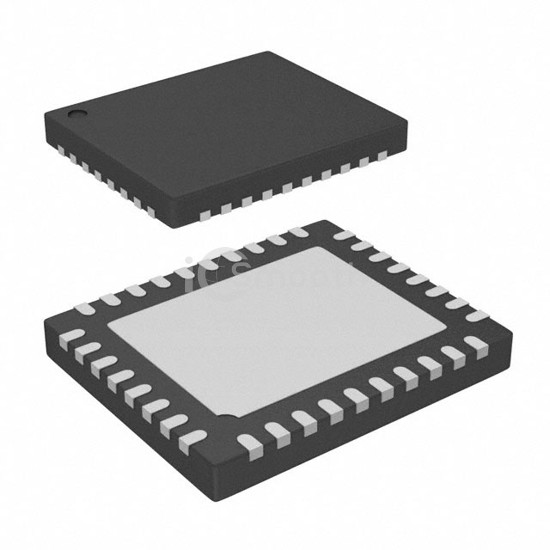

LTC3774IUHE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: LTC3774IUHE#PBF Analog Devices Inc.
LTC3774IUHE#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 36QFN

LTC3774IUHE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 36-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 97

Tiered Pricing USD
1+ $10.6900 —
10+ $7.2910 -32%
61+ $5.7192 -46%
122+ $5.2848 -51%
305+ $5.0125 -53% BEST

Specifications

18 parameters
Product StatusActive
Output TypePWM Signal
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Number of Outputs2
Output Phases2
Voltage - Supply (Vcc/Vdd)4.5V ~ 38V
Frequency - Switching150kHz ~ 1.2MHz
Duty Cycle (Max)98%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case36-WFQFN Exposed Pad
Supplier Device Package36-QFN (5x6)
