Name: LTC3774EUHE#PBF
Brand: Analog Devices Inc.
SKU: LTC3774EUHE#PBF
Price: 9.75 USD
Availability: InStock

REF: LTC3774EUHE#PBF Analog Devices Inc.

LTC3774EUHE#PBF

Analog Devices Inc.

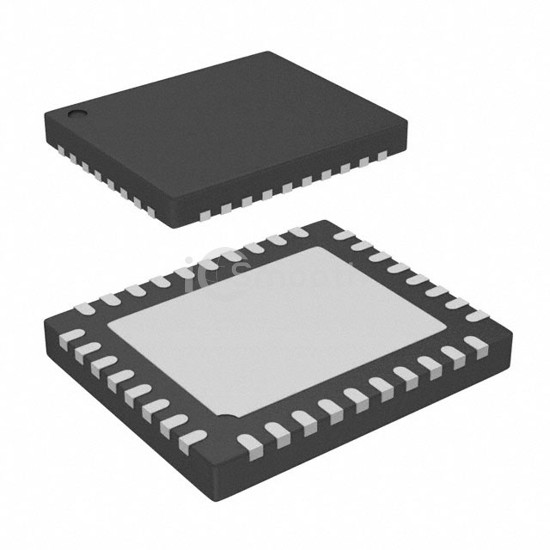

IC REG CTRLR BUCK 36QFN

LTC3774EUHE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 36QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 36-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 83

Tiered Pricing USD

1+ $9.7500 —

10+ $6.6070 -32%

61+ $5.1557 -47%

122+ $4.7550 -51%

305+ $4.4250 -55% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM Signal
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	150kHz ~ 1.2MHz

Duty Cycle (Max)	98%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	36-WFQFN Exposed Pad
Supplier Device Package	36-QFN (5x6)
