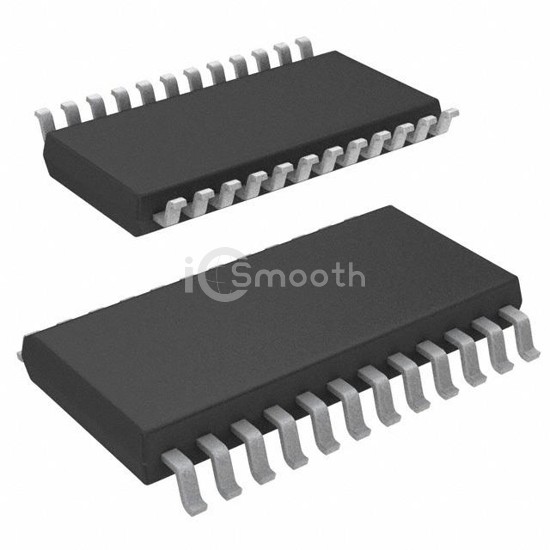

Name: LTC3736EGN#PBF
Brand: Analog Devices Inc.
SKU: LTC3736EGN#PBF
Price: 12.63 USD
Availability: InStock

REF: LTC3736EGN#PBF Analog Devices Inc.

LTC3736EGN#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 24SSOP

LTC3736EGN#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.75V ~ 9.8V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,753

Tiered Pricing USD

1+ $12.6300 —

10+ $8.7060 -31%

55+ $6.9740 -45%

110+ $6.4591 -49%

275+ $6.2625 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	2.75V ~ 9.8V
Frequency - Switching	300kHz ~ 750kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Enable, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-SSOP
