Name: LTC3736EGN-1#PBF
Brand: Analog Devices Inc.
SKU: LTC3736EGN-1#PBF
Price: 14.16 USD
Availability: InStock

REF: LTC3736EGN-1#PBF Analog Devices Inc.

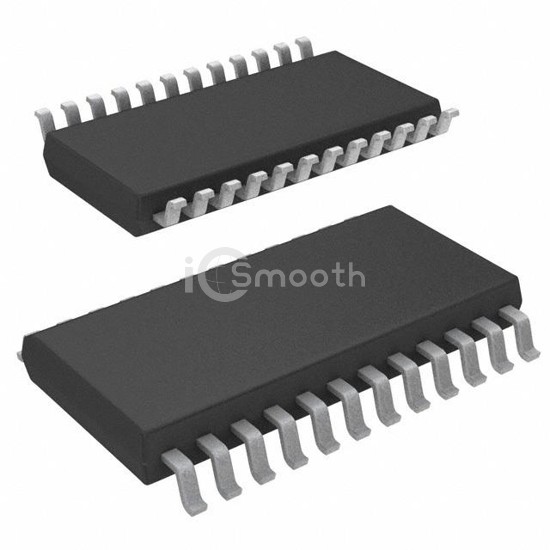

LTC3736EGN-1#PBF

Analog Devices Inc.

IC REG CTRLR BUCK 24SSOP

LTC3736EGN-1#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.75V ~ 9.8V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,527

Tiered Pricing USD

1+ $14.1600 —

10+ $9.8320 -31%

55+ $7.9220 -44%

110+ $7.3543 -48%

275+ $7.2875 -49% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	2.75V ~ 9.8V
Frequency - Switching	300kHz ~ 750kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-SSOP
