Name: LTC3722EGN-2#TRPBF
Brand: Analog Devices Inc.
SKU: LTC3722EGN-2#TRPBF
Price: 9.06 USD
Availability: InStock

REF: LTC3722EGN-2#TRPBF Analog Devices Inc.

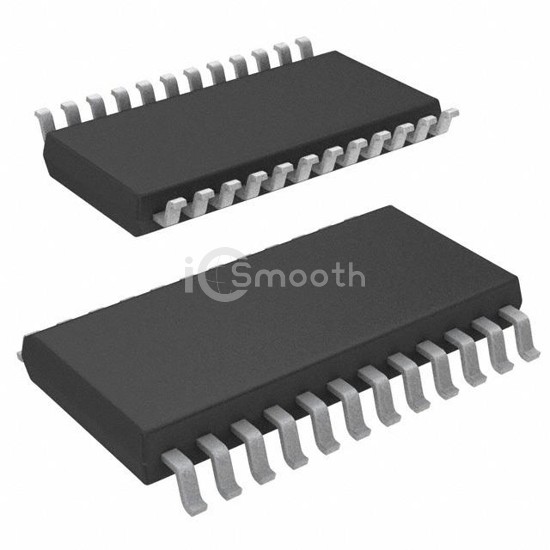

LTC3722EGN-2#TRPBF

Analog Devices Inc.

IC REG CTRLR FULL-BRIDGE 24SSOP

LTC3722EGN-2#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FULL-BRIDGE 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.8V ~ 10.25V, package / case 24-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,616

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Full-Bridge
Number of Outputs	6
Output Phases	2
Voltage - Supply (Vcc/Vdd)	3.8V ~ 10.25V
Frequency - Switching	-

Duty Cycle (Max)	98.5%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Ramp, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154", 3.90mm Width)
Supplier Device Package	24-SSOP
