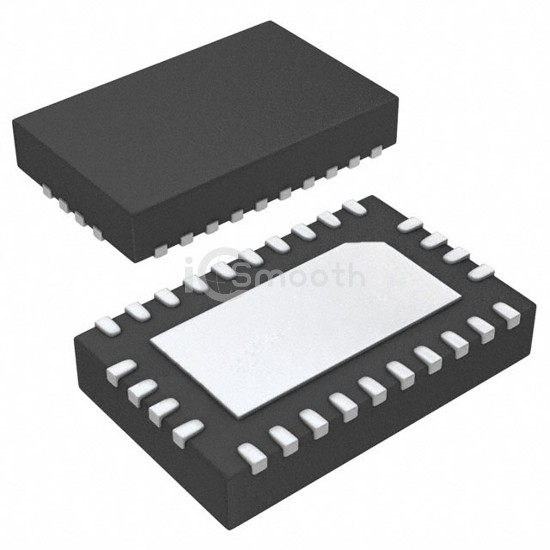

LTC3643EUDD#TRPBF

In Stock: 1,287
LTC3643EUDD#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3643EUDD#TRPBF Analog Devices Inc.
LTC3643EUDD#TRPBF

Analog Devices Inc.

IC REG BUCK BST ADJ 2A 24QFN

LTC3643EUDD#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK BST ADJ 2A 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 24-WFQFN Exposed Pad, current - output 2A.

Datasheet Request a Quote

In Stock: 1,287

Tiered Pricing USD
1+ $13.2000 —
10+ $9.1210 -31%
25+ $8.0580 -39%
100+ $6.8563 -48%
250+ $6.6375 -50% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Up, Step-Down
Output ConfigurationPositive
TopologyBuck, Boost
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)3V
Voltage - Input (Max)17V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)-
Current - Output2A
Frequency - Switching1MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad
Supplier Device Package24-QFN (3x5)
