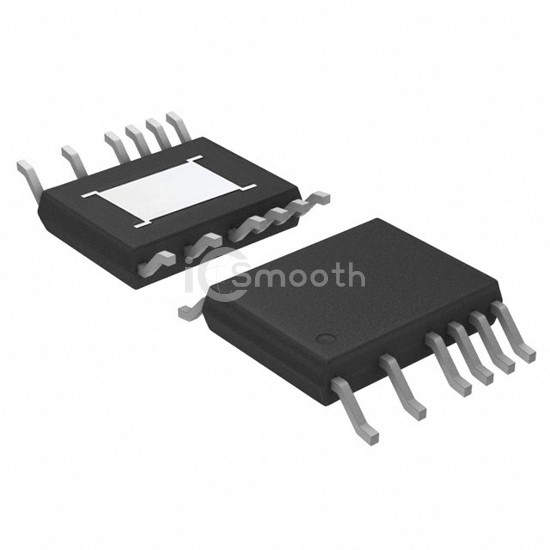

Name: LTC3630AIMSE#PBF
Brand: Analog Devices Inc.
SKU: LTC3630AIMSE#PBF
Price: 10.61 USD
Availability: InStock

REF: LTC3630AIMSE#PBF Analog Devices Inc.

LTC3630AIMSE#PBF

Analog Devices Inc.

IC REG BCK ADJ/PROG 500MA 16MSOP

LTC3630AIMSE#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK ADJ/PROG 500MA 16MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad, current - output 500mA.

Datasheet Request a Quote

In Stock: 7,422

Tiered Pricing USD

1+ $10.6100 —

10+ $7.2340 -32%

37+ $6.0341 -43%

111+ $5.2944 -50%

259+ $4.9625 -53% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive or Negative
Topology	Buck
Output Type	Adjustable (Programmable)
Number of Outputs	1
Voltage - Input (Min)	4V
Voltage - Input (Max)	76V
Voltage - Output (Min/Fixed)	0.8V (1.8V, 3.3V, 5V)

Voltage - Output (Max)	76V
Current - Output	500mA
Frequency - Switching	-
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad
Supplier Device Package	16-MSOP-EP
