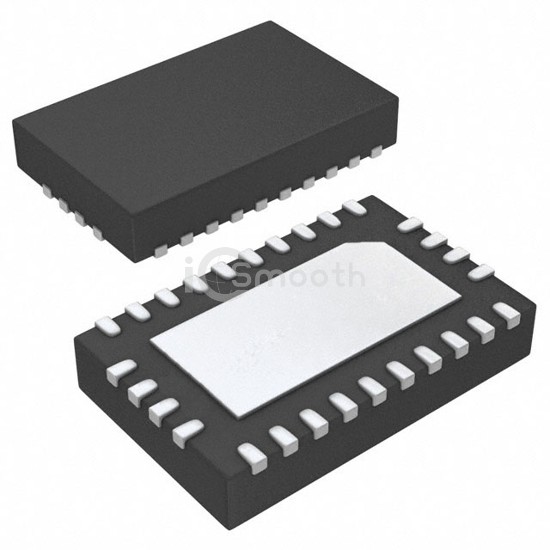

LTC3614EUDD#TRPBF

In Stock: 6,098
LTC3614EUDD#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3614EUDD#TRPBF Analog Devices Inc.
LTC3614EUDD#TRPBF

Analog Devices Inc.

IC REG BUCK ADJUSTABLE 4A 24QFN

LTC3614EUDD#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJUSTABLE 4A 24QFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 24-WFQFN Exposed Pad, current - output 4A.

Datasheet Request a Quote

In Stock: 6,098

Tiered Pricing USD
1+ $10.9300 —
10+ $7.4640 -32%
25+ $6.5600 -40%
100+ $5.5380 -49%
250+ $5.1625 -53% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)2.25V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)5.5V
Current - Output4A
Frequency - Switching300kHz ~ 4MHz
Synchronous RectifierYes
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad
Supplier Device Package24-QFN (3x5)
