LTC3569IUDC#TRPBF

In Stock: 2,852

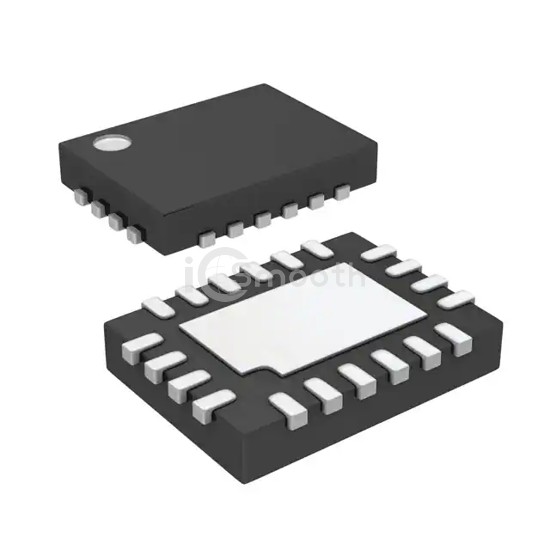

LTC3569IUDC#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3569IUDC#TRPBF Analog Devices Inc.
LTC3569IUDC#TRPBF

Analog Devices Inc.

IC REG BUCK ADJ TRPL 20QFN

LTC3569IUDC#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ TRPL 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-WFQFN Exposed Pad, current - output 600mA, 1.2A.

Datasheet Request a Quote

In Stock: 2,852

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs3
Voltage - Input (Min)2.5V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.425V
Voltage - Output (Max)5.5V
Current - Output600mA, 1.2A
Frequency - Switching2.25MHz, 1MHz ~ 3MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad
Supplier Device Package20-QFN (3x4)
