Name: LTC3569EUDC#PBF
Brand: Analog Devices Inc.
SKU: LTC3569EUDC#PBF
Price: 10.11 USD
Availability: InStock

REF: LTC3569EUDC#PBF Analog Devices Inc.

LTC3569EUDC#PBF

Analog Devices Inc.

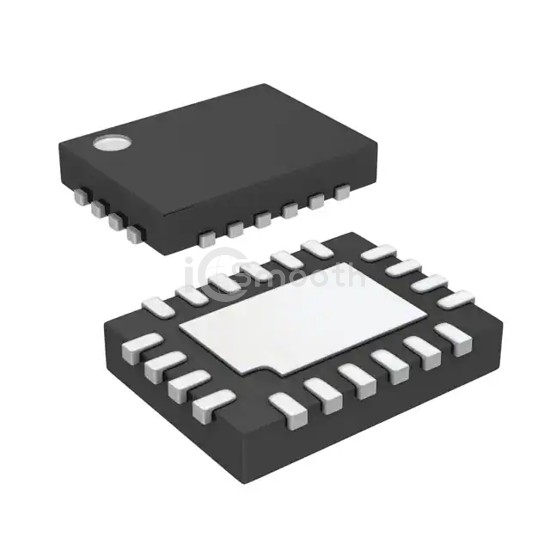

IC REG BUCK ADJ TRPL 20QFN

LTC3569EUDC#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ TRPL 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-WFQFN Exposed Pad, current - output 600mA, 1.2A.

Datasheet Request a Quote

In Stock: 3,146

Tiered Pricing USD

1+ $10.1100 —

10+ $6.8710 -32%

91+ $5.1250 -49%

182+ $4.7513 -53%

273+ $4.6500 -54% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	3
Voltage - Input (Min)	2.5V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.425V

Voltage - Output (Max)	5.5V
Current - Output	600mA, 1.2A
Frequency - Switching	2.25MHz, 1MHz ~ 3MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x4)
