LTC3564EDCB#TRPBF

In Stock: 1,544

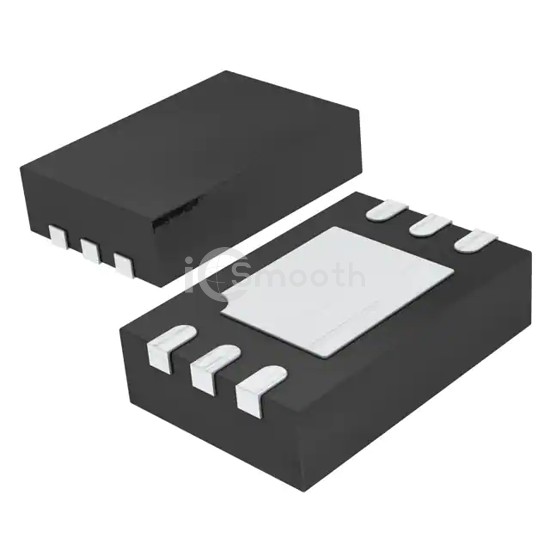

LTC3564EDCB#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3564EDCB#TRPBF Analog Devices Inc.
LTC3564EDCB#TRPBF

Analog Devices Inc.

IC REG BUCK ADJ 1.25A 6DFN

LTC3564EDCB#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 1.25A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFDFN Exposed Pad, current - output 1.25A.

Datasheet Request a Quote

In Stock: 1,544

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)2.5V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.6V
Voltage - Output (Max)5.5V
Current - Output1.25A
Frequency - Switching2.25MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device Package6-DFN (2x3)
