LTC3562EUD#PBF

In Stock: 1,995

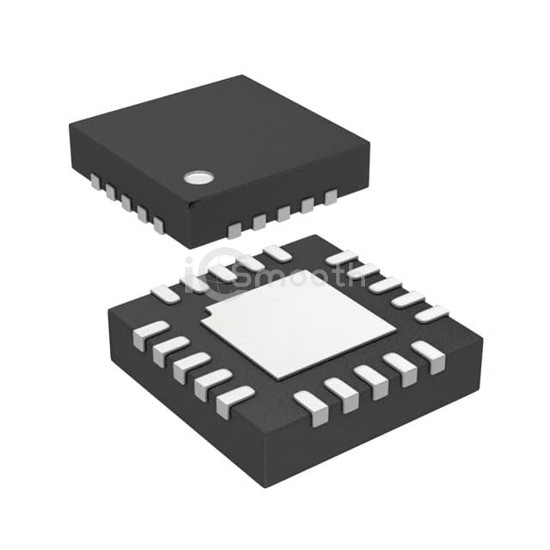

LTC3562EUD#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3562EUD#PBF Analog Devices Inc.
LTC3562EUD#PBF

Analog Devices Inc.

IC REG BUCK ADJ/PROG QD 20QFN

LTC3562EUD#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ/PROG QD 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-WFQFN Exposed Pad, current - output 400mA, 600mA.

Datasheet Request a Quote

In Stock: 1,995

Tiered Pricing USD
1+ $11.2300 —
10+ $7.6780 -32%
25+ $6.7536 -40%
121+ $5.5908 -50%
363+ $5.3500 -52% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable (Programmable)
Number of Outputs4
Voltage - Input (Min)2.7V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.425V (0.6V)
Voltage - Output (Max)0.8V (3.78V)
Current - Output400mA, 600mA
Frequency - Switching2.25MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad
Supplier Device Package20-QFN (3x3)
