Name: LTC3546EFE
Brand: Analog Devices Inc.
SKU: LTC3546EFE
Availability: InStock

REF: LTC3546EFE Analog Devices Inc.

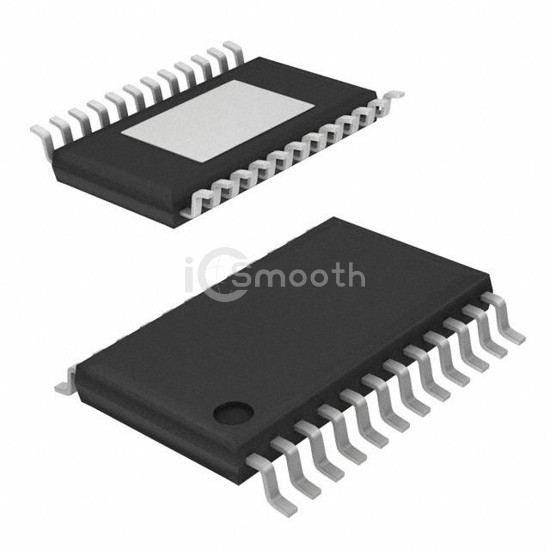

LTC3546EFE

IC REG BCK ADJ 1A/2A DL 28TSSOP

LTC3546EFE is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK ADJ 1A/2A DL 28TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad, current - output 1A, 2A.

Datasheet Request a Quote

In Stock: 1,839

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.6V

Voltage - Output (Max)	5V
Current - Output	1A, 2A
Frequency - Switching	2.25MHz, 750kHz ~ 4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-TSSOP-EP
