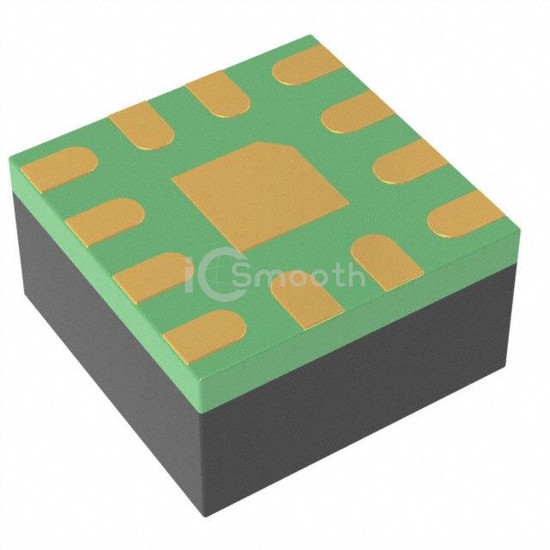

LTC3315AJV#WTRMPBF

In Stock: 1,757
LTC3315AJV#WTRMPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3315AJV#WTRMPBF Analog Devices Inc.
LTC3315AJV#WTRMPBF

Analog Devices Inc.

2X2A, 5V SYNCH STEP-DOWN BUCK IN

LTC3315AJV#WTRMPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. 2X2A, 5V SYNCH STEP-DOWN BUCK IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 12-VFQFN Exposed Pad, current - output 2A, 2A.

Datasheet Request a Quote

In Stock: 1,757

Tiered Pricing USD
1+ $9.6600 —
10+ $6.5480 -32%
25+ $5.7352 -41%
100+ $4.8165 -50%
250+ $4.3750 -55% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs2
Voltage - Input (Min)2.25V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.5V
Voltage - Output (Max)5.5V
Current - Output2A, 2A
Frequency - Switching2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case12-VFQFN Exposed Pad
Supplier Device Package12-LQFN (2x2)
