LTC3115IDHD-1#WTRPBF

In Stock: 7,588

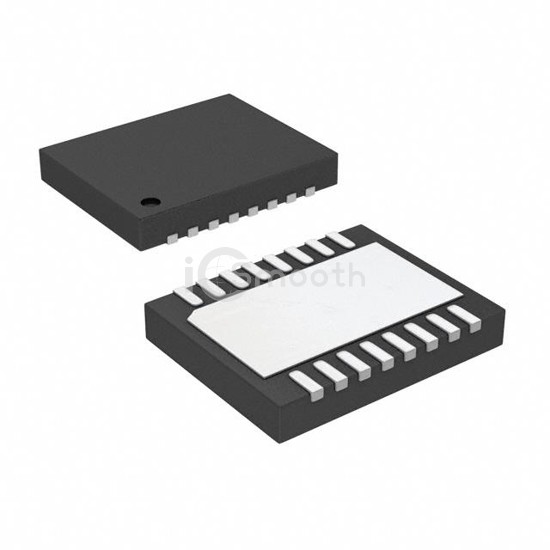

LTC3115IDHD-1#WTRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3115IDHD-1#WTRPBF Analog Devices Inc.
LTC3115IDHD-1#WTRPBF

Analog Devices Inc.

40V, 2A SYNC BUCK-BOOST DC/DC CO

LTC3115IDHD-1#WTRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. 40V, 2A SYNC BUCK-BOOST DC/DC CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1A, 2A.

Datasheet Request a Quote

In Stock: 7,588

Specifications

17 parameters
Product StatusActive
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)2.7V
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)2.7V
Voltage - Output (Max)40V
Current - Output1A, 2A
Frequency - Switching100kHz ~ 2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Supplier Device Package16-DFN (5x4)
