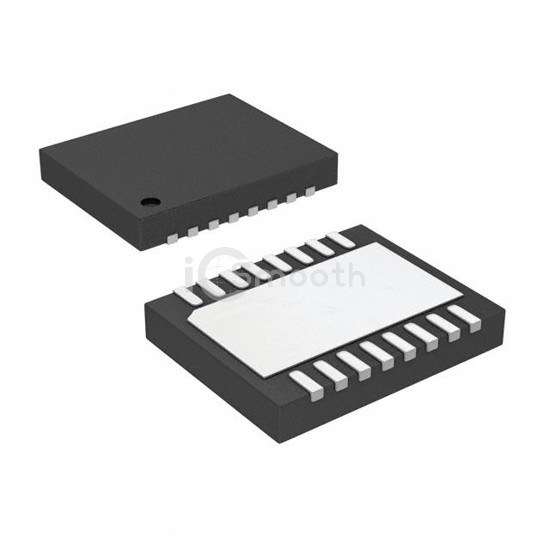

LTC3115IDHD-1#PBF

In Stock: 6,284
LTC3115IDHD-1#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3115IDHD-1#PBF Analog Devices Inc.
LTC3115IDHD-1#PBF

Analog Devices Inc.

IC REG BCK BST ADJ 1A/2A 16DFN

LTC3115IDHD-1#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK BST ADJ 1A/2A 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1A, 2A.

Datasheet Request a Quote

In Stock: 6,284

Tiered Pricing USD
1+ $16.2900 —
10+ $11.4090 -30%
73+ $8.9840 -45%
146+ $8.7625 -46% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)2.2V
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)2.7V
Voltage - Output (Max)40V
Current - Output1A, 2A
Frequency - Switching100kHz ~ 2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Supplier Device Package16-DFN (5x4)
