LTC3113EDHD#PBF

In Stock: 6,224

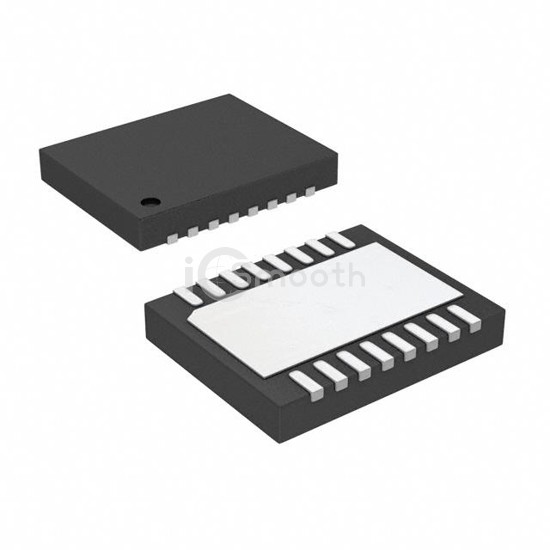

LTC3113EDHD#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC3113EDHD#PBF Analog Devices Inc.
LTC3113EDHD#PBF

Analog Devices Inc.

IC REG BCK BST ADJ 3A 16DFN

LTC3113EDHD#PBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK BST ADJ 3A 16DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 6,224

Specifications

17 parameters
Product StatusActive
FunctionStep-Up/Step-Down
Output ConfigurationPositive
TopologyBuck-Boost
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)1.8V
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)1.8V
Voltage - Output (Max)5.5V
Current - Output3A
Frequency - Switching300kHz ~ 2MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-WFDFN Exposed Pad
Supplier Device Package16-DFN (5x4)
