Name: LTC2755IUP-14#PBF
Brand: Analog Devices Inc.
SKU: LTC2755IUP-14#PBF
Price: 33.70 USD
Availability: InStock

REF: LTC2755IUP-14#PBF Analog Devices Inc.

LTC2755IUP-14#PBF

Analog Devices Inc.

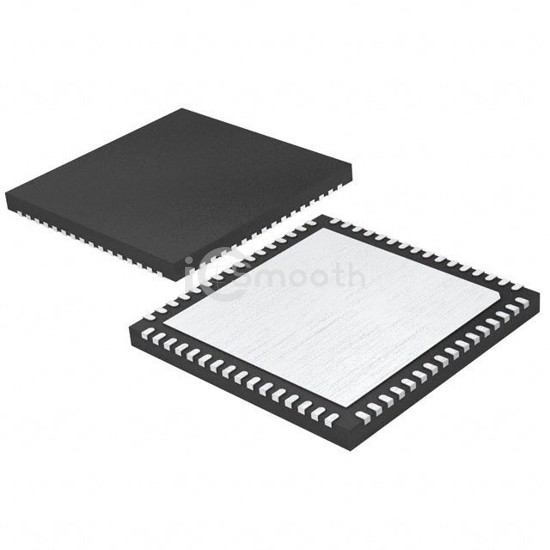

IC DAC 14BIT A-OUT 64QFN

LTC2755IUP-14#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT A-OUT 64QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 64-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,301

Tiered Pricing USD

1+ $33.7000 —

10+ $24.7640 -27%

40+ $22.4125 -33% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	14
Number of D/A Converters	4
Settling Time	2µs (Typ)
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	Multiplying DAC
Operating Temperature	-40°C ~ 85°C
Package / Case	64-WFQFN Exposed Pad
Supplier Device Package	64-QFN (9x9)
Mounting Type	Surface Mount
