LTC2755AIUP-16

In Stock: 6,941

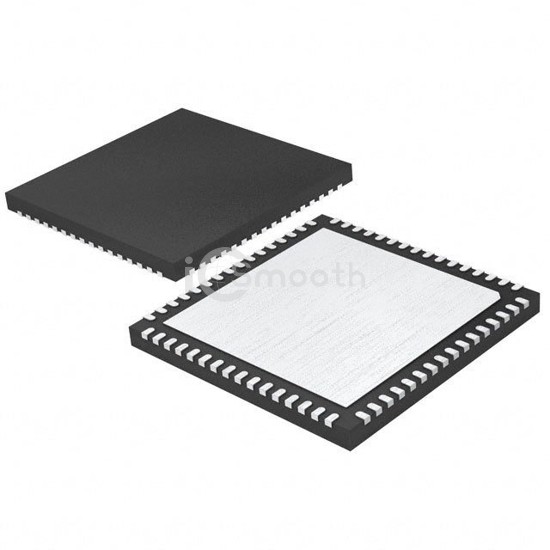

LTC2755AIUP-16 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: LTC2755AIUP-16 Analog Devices Inc.
LTC2755AIUP-16

Analog Devices Inc.

IC DAC 16BIT A-OUT 64QFN

LTC2755AIUP-16 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 64QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 64-WFQFN Exposed Pad.

Request a Quote

In Stock: 6,941

Specifications

16 parameters
Product StatusObsolete
Number of Bits16
Number of D/A Converters4
Settling Time2µs (Typ)
Output TypeCurrent - Unbuffered
Differential OutputYes
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±0.4, ±0.2
ArchitectureMultiplying DAC
Operating Temperature-40°C ~ 85°C
Package / Case64-WFQFN Exposed Pad
Supplier Device Package64-QFN (9x9)
Mounting TypeSurface Mount
