LTC2686HUJ-16#TRPBF

In Stock: 4,276

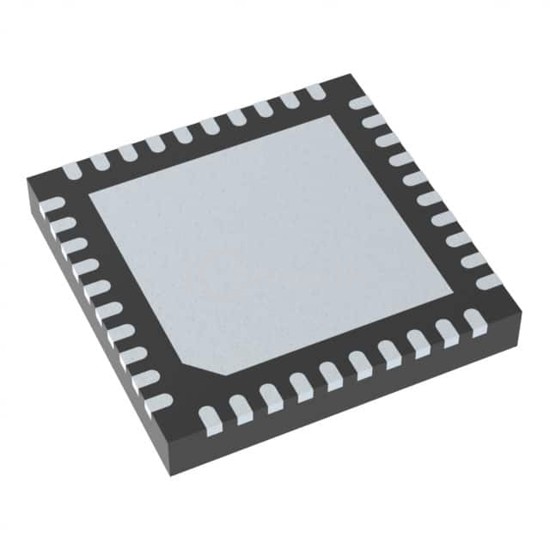

LTC2686HUJ-16#TRPBF - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: LTC2686HUJ-16#TRPBF Analog Devices Inc.
LTC2686HUJ-16#TRPBF

Analog Devices Inc.

8 CH +/-15V SOFTSPAN DACS

LTC2686HUJ-16#TRPBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 8 CH +/-15V SOFTSPAN DACS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,276

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters8
Settling Time18µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal, Internal
Voltage - Supply, Analog4.75V ~ 5.25V
Voltage - Supply, Digital4.75V ~ 5.25V
INL/DNL (LSB)±3 (Max), ±1 (Max)
Architecture-
Operating Temperature-40°C ~ 125°C
Package / Case40-WFQFN Exposed Pad
Supplier Device Package40-QFN (6x6)
Mounting TypeSurface Mount
