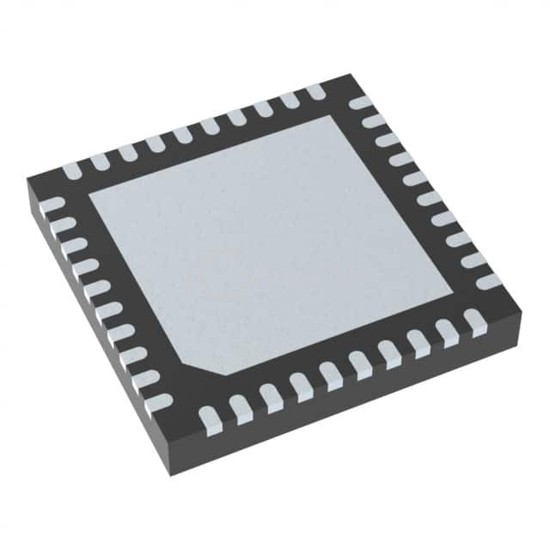

Name: LTC2686CUJ-16#PBF
Brand: Analog Devices Inc.
SKU: LTC2686CUJ-16#PBF
Price: 36.36 USD
Availability: InStock

REF: LTC2686CUJ-16#PBF Analog Devices Inc.

LTC2686CUJ-16#PBF

Analog Devices Inc.

8 CH +/-15V SOFTSPAN DACS

LTC2686CUJ-16#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 8 CH +/-15V SOFTSPAN DACS. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,979

Tiered Pricing USD

1+ $36.3600 —

10+ $26.8520 -26%

61+ $24.6751 -32% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	16
Number of D/A Converters	8
Settling Time	18µs (Typ)
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI
Reference Type	External, Internal

Voltage - Supply, Analog	4.75V ~ 5.25V
Voltage - Supply, Digital	4.75V ~ 5.25V
INL/DNL (LSB)	±3LSB (Max), ±1 (Max)
Architecture	-
Operating Temperature	0°C ~ 70°C
Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Mounting Type	Surface Mount
