Name: LTC2305IMS#PBF
Brand: Analog Devices Inc.
SKU: LTC2305IMS#PBF
Price: 7.40 USD
Availability: InStock

REF: LTC2305IMS#PBF Analog Devices Inc.

LTC2305IMS#PBF

Analog Devices Inc.

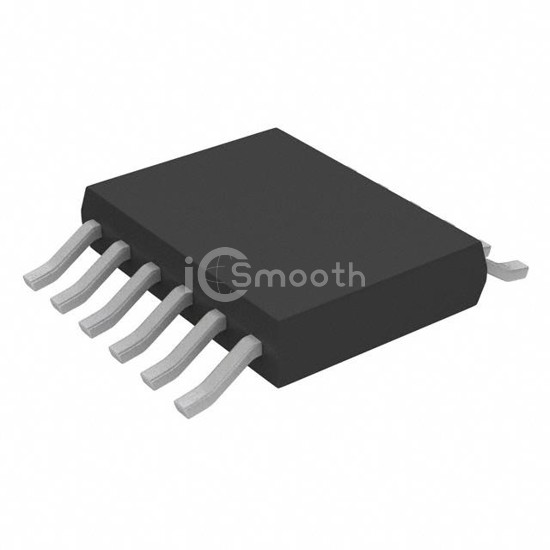

IC ADC 12BIT SAR 12MSOP

LTC2305IMS#PBF is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT SAR 12MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 12-TSSOP (0.118", 3.00mm Width).

Datasheet Request a Quote

In Stock: 1,882

Tiered Pricing USD

1+ $7.4000 —

10+ $4.9810 -33%

37+ $4.1230 -44%

111+ $3.8000 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	14k
Number of Inputs	2
Input Type	Differential, Single Ended
Data Interface	I²C
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	Selectable Address
Operating Temperature	-40°C ~ 85°C
Package / Case	12-TSSOP (0.118", 3.00mm Width)
Supplier Device Package	12-MSOP
Mounting Type	Surface Mount
