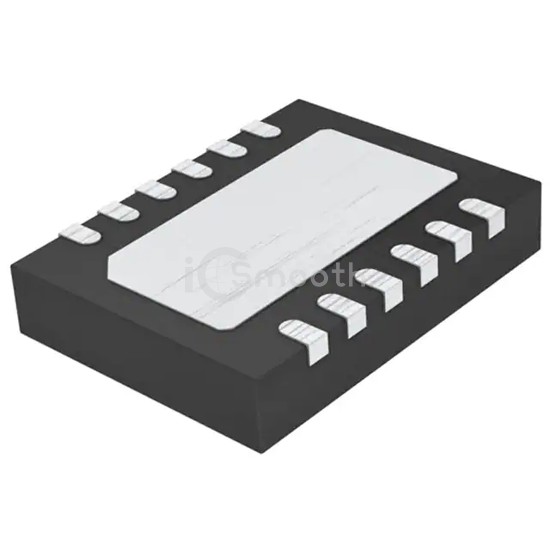

Name: LTC2301IDE#PBF
Brand: Analog Devices Inc.
SKU: LTC2301IDE#PBF
Price: 6.91 USD
Availability: InStock

REF: LTC2301IDE#PBF Analog Devices Inc.

LTC2301IDE#PBF

Analog Devices Inc.

IC ADC 12BIT SAR 12DFN

LTC2301IDE#PBF is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 12BIT SAR 12DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 12-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,405

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	14k
Number of Inputs	1
Input Type	Differential, Single Ended
Data Interface	I²C
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	5V
Features	Selectable Address
Operating Temperature	-40°C ~ 85°C
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-DFN (4x3)
Mounting Type	Surface Mount
