Name: LTC2296CUP#PBF
Brand: Analog Devices Inc.
SKU: LTC2296CUP#PBF
Price: 46.13 USD
Availability: InStock

REF: LTC2296CUP#PBF Analog Devices Inc.

LTC2296CUP#PBF

Analog Devices Inc.

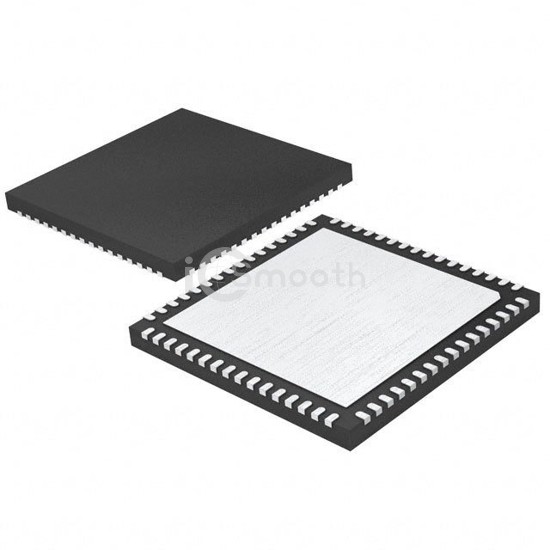

IC ADC 14BIT PIPELINED 64QFN

LTC2296CUP#PBF is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 64QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.7V ~ 3.4V, package / case 64-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,177

Tiered Pricing USD

1+ $46.1300 —

10+ $34.5970 -25%

40+ $33.2750 -28% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	25M
Number of Inputs	2
Input Type	Differential, Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	2

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	2.7V ~ 3.4V
Voltage - Supply, Digital	2.7V ~ 3.4V
Features	Simultaneous Sampling
Operating Temperature	0°C ~ 70°C
Package / Case	64-WFQFN Exposed Pad
Supplier Device Package	64-QFN (9x9)
Mounting Type	Surface Mount
