Name: LTC2274IUJ
Brand: Analog Devices Inc.
SKU: LTC2274IUJ
Availability: InStock

REF: LTC2274IUJ Analog Devices Inc.

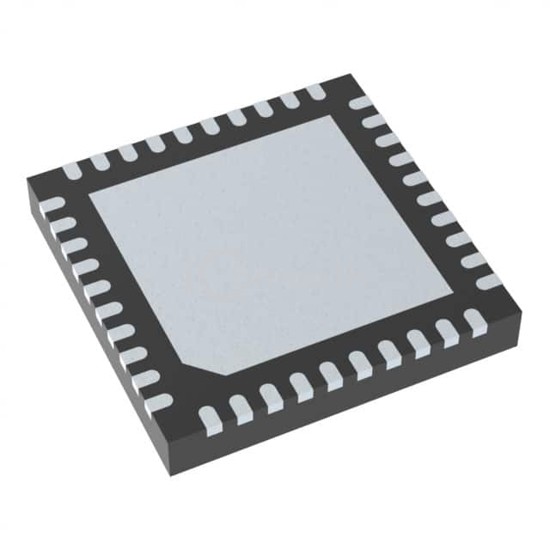

LTC2274IUJ

IC ADC 16BIT PIPELINED 40QFN

LTC2274IUJ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 16BIT PIPELINED 40QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.135V ~ 3.465V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,542

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	16
Sampling Rate (Per Second)	105M
Number of Inputs	1
Input Type	Differential
Data Interface	JESD204
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	3.135V ~ 3.465V
Voltage - Supply, Digital	3.135V ~ 3.465V
Features	PGA
Operating Temperature	-40°C ~ 85°C
Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Mounting Type	Surface Mount
