Name: LTC2258IUJ-14#PBF
Brand: Analog Devices Inc.
SKU: LTC2258IUJ-14#PBF
Price: 48.92 USD
Availability: InStock

REF: LTC2258IUJ-14#PBF Analog Devices Inc.

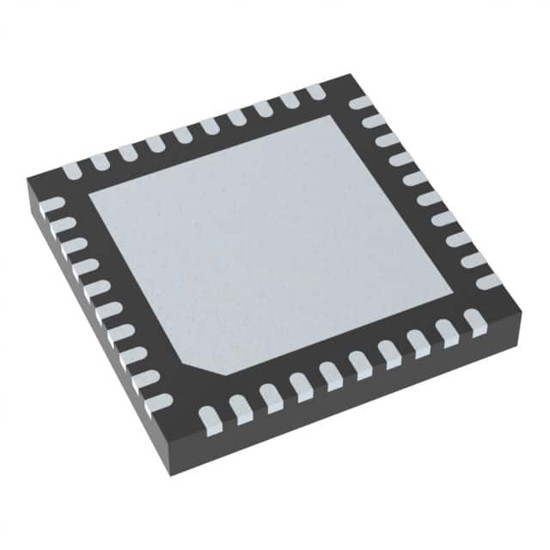

LTC2258IUJ-14#PBF

Analog Devices Inc.

IC ADC 14BIT PIPELINED 40QFN

LTC2258IUJ-14#PBF is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT PIPELINED 40QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.7V ~ 1.9V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,374

Specifications

18 parameters

Product Status	Active
Number of Bits	14
Sampling Rate (Per Second)	65M
Number of Inputs	1
Input Type	Differential
Data Interface	LVDS - Parallel, Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Pipelined
Reference Type	External, Internal
Voltage - Supply, Analog	1.7V ~ 1.9V
Voltage - Supply, Digital	1.7V ~ 1.9V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Mounting Type	Surface Mount
