Name: LTC1922EN-1#PBF
Brand: Analog Devices Inc.
SKU: LTC1922EN-1#PBF
Price: 8.73 USD
Availability: InStock

REF: LTC1922EN-1#PBF Analog Devices Inc.

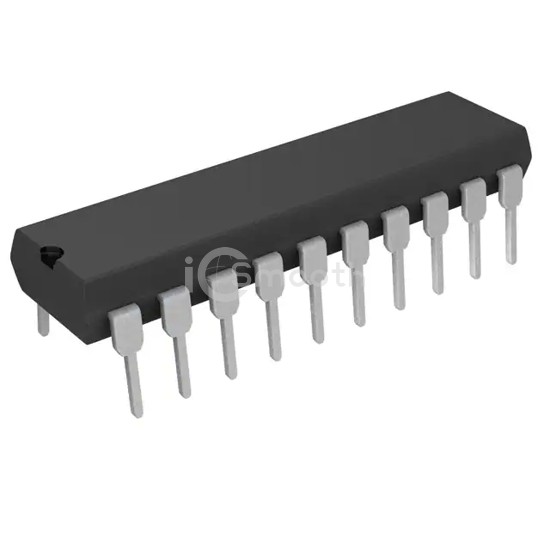

LTC1922EN-1#PBF

Analog Devices Inc.

IC REG CTRLR FULL-BRIDGE 20DIP

LTC1922EN-1#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR FULL-BRIDGE 20DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3.8V ~ 10.3V, package / case 20-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,275

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Full-Bridge
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	3.8V ~ 10.3V
Frequency - Switching	Up to 1MHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Ramp, Soft Start
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	20-DIP (0.300", 7.62mm)
Supplier Device Package	20-PDIP
