LTC1821-1BCGW#TRPBF

In Stock: 2,223
LTC1821-1BCGW#TRPBF - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: LTC1821-1BCGW#TRPBF Analog Devices Inc.
LTC1821-1BCGW#TRPBF

Analog Devices Inc.

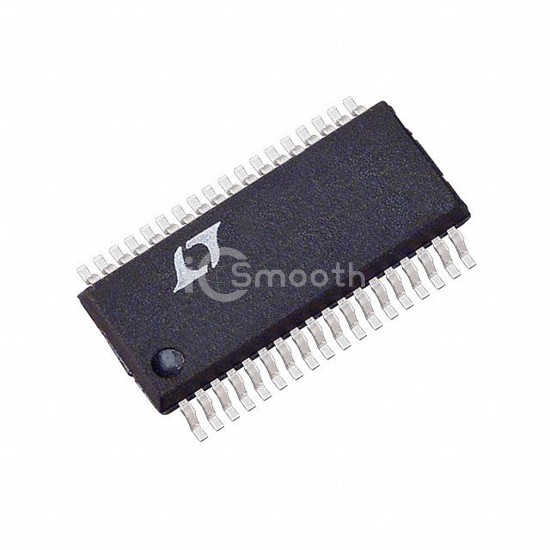

IC DAC 16BIT V-OUT 36SSOP

LTC1821-1BCGW#TRPBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 36SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, package / case 36-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,223

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time2µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±4.5V ~ 16.5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case36-BSOP (0.295", 7.50mm Width)
Supplier Device Package36-SSOP
Mounting TypeSurface Mount
